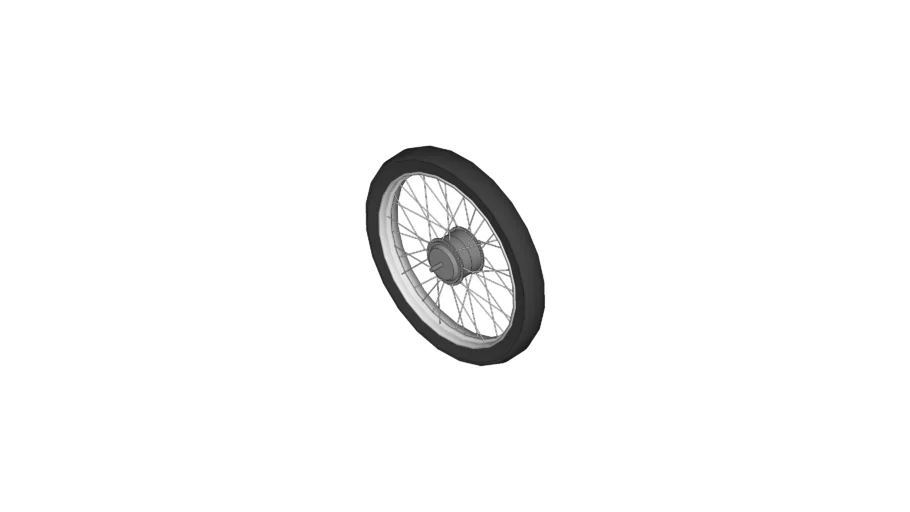

Whew! This was labor of love. This represents a "fat", 26-inch bicycle rim and tire, with a hub motor. The actual rim diameter is 26.125 inches in the drawing.
The hub motor is exactly 135 mm across, side to side.
Rim as 36 spokes I think. Spokes are components; change one, they all change, as are the halves of the hub motor.
Hopefully this will work for you. Enjoy!
