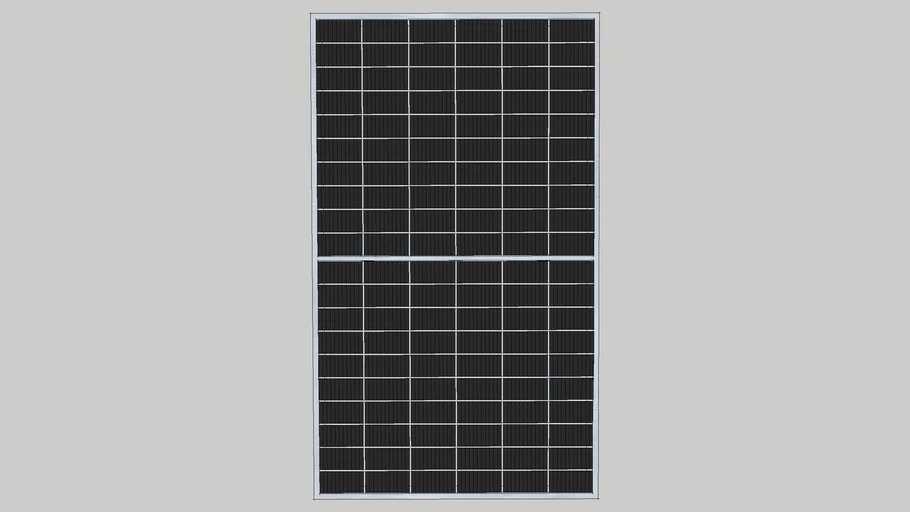

A 2*60 i.e. 120 cell solar panel by JA Solar. Depending on model this panel is rated between 330 and 350 nominal watts. Drawn by the Author from information provided by JA solar on their website: https://jasolar.com/html/en/ . As dimensions of some the screw holes and spaces between panels are not specified in the information provided, please do not rely on exact sizes or fixing hole locations though they should be fine for illustrative purposes.
All models appear to have the same configuration Drawing applies to all models from -330 to -350.
