For the dynamic options you should import this component instead load it.

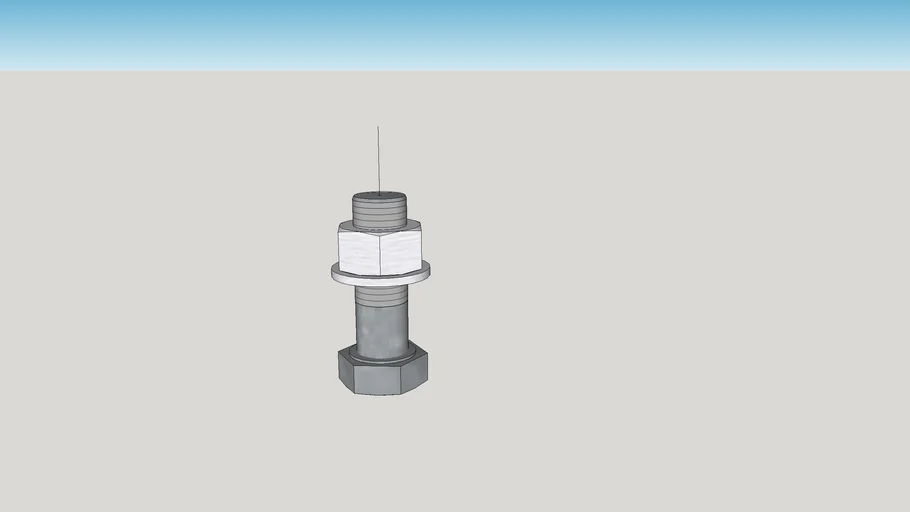

Basic is a Hexagon bolt with nut and washer at the nutside
You can choose for a cylindrical or countersunk head with (lock)nut and (spring)washers
Adjust the bolt-length and the thread-length.
You can switch off the centre-line after positioning.
In the Edit-component mode you can select several parts off this model and make a solid of it.
You can make a solid with Tools/Solid-Tools/Union The centreline wil be delete in the solid
