Application purpose:
- For renovations, conversions and new buildings
- For wall-hung washbasins with a width of up to 70 cm
- For wall-hung washbasins, bowl asymmetrical, with a width of up to 64 cm, with double towel rail
- For wall-hung washbasins, bowl symmetrical, with a width of up to 55 cm, with double towel rail
- For replacing wall-hung washbasins
- For mounting on finished floors
Characteristics:
- Service opening for trap, height-adjustable
- Integrated connection to drinking water supply
- Compensation of dimensional tolerances possible
- Fastening distance for washbasin 13–31 cm, expandable to 45 cm
- Front cladding made of glass (ESG)
- Integrated fastening rail for attaching washbasin and double towel rail
- Side cladding made of aluminium brushed
- Self-supporting
- Replaceable trap
- Trap hidden and easily accessible
- Pre-drilled for concealed tap for two-hole wall-mounted tap
Technical data:
- Flow pressure1-10 bar
- Maximum thermal disinfection80 °C
Scope of delivery:
- Washbasin element with front and side cladding
- Cover profile for fastening rail
- Water supply connection set with 3 reinforced braided hoses, 2 connection bends 90° Rp 1/2 and G 3/8 and 2 angle stop valves, 1/2"
- Trap with straight connector and union nut G 1 1/4
- Straight connector made of ASA, ø 32 mm
- Straight connector made of ASA, ø 40 mm
- Set of seals
- Fastening plate for mixer for two-hole wall-mounted tap
- Fastening material for solid wall
Articles:

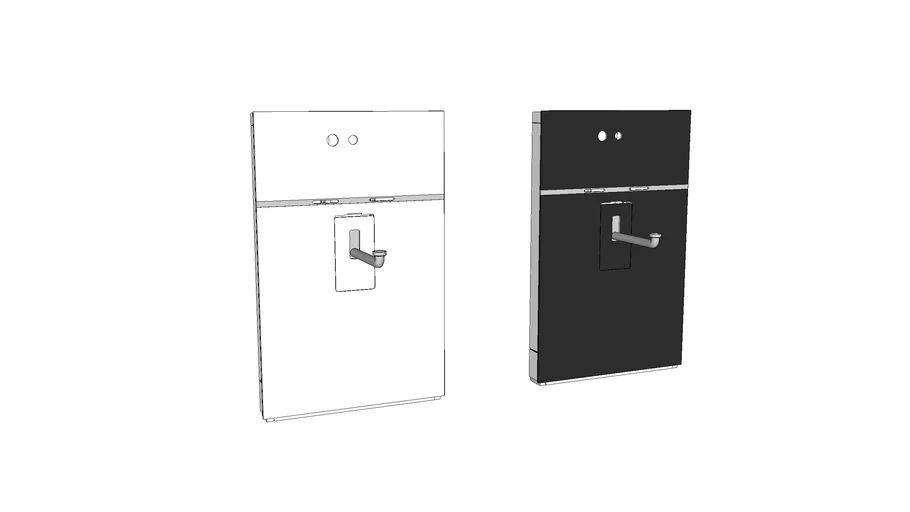

131.047.SI.1 white glass
131.047.SJ.1 black glass
