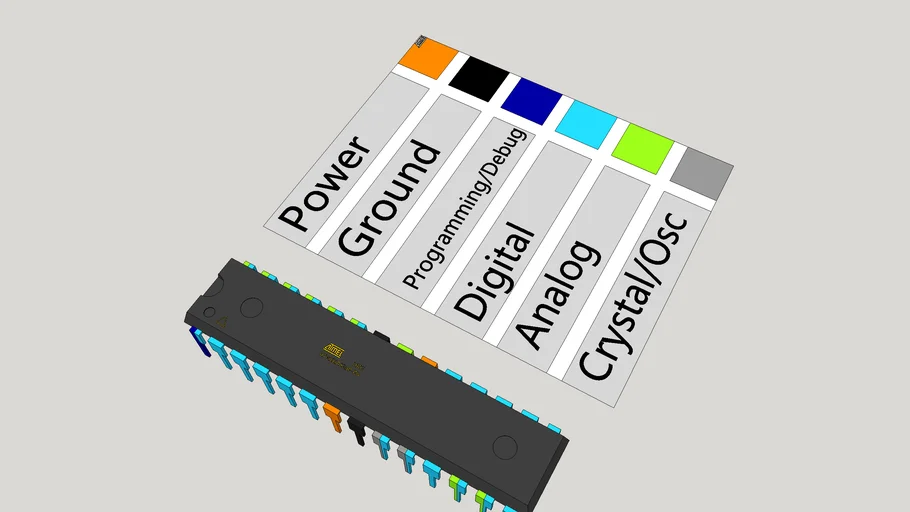

This is a Model I designed as close to 1:1 as my Digital Calibre will allow. As you can see, I have Color Coated the Pins according to the Summary Document on the ATMEL website as Possible. Also For Convienence, I have made a rudementary Legend to the Right of the Model, if the Reset/Debugging Pin is on the Left...
I have not labeled the Pins, I feel it not necessary, but may in the Future.
I certainly hope this may be of use, Peace and Blessings unto you all...
#ATMEGA328 #ATMEL #AVR #Electrical_Component #IC #Microcontroller
